1852 Locker Hinge for Inset Doors – 50mm

A 50mm Locker Hinge for Inset Doors. Suitable for 10mm wooden or composite doors and self colour for painting. Fixing with rivets or screws (not supplied).

Features & Benefits

  • Made in Britain
  • Easy and simple to fit
  • Quality Materials

These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.

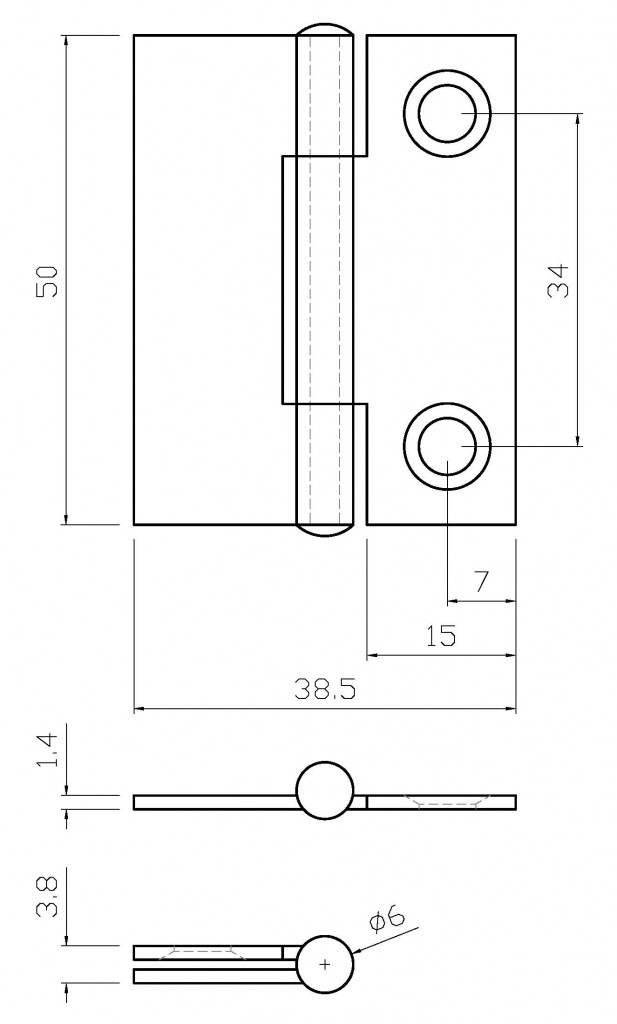

Length 50mm
Width Open 38.5mm
Thickness 1.4mm
Fixing Holes 2
Fixing Size 4mm
Self-colour TEL: 1852 0 22 01
Bulk Packed 500
Max. load (2 hinges fitted) 8.5kg
Max. load (3 hinges fitted) 12.5kg
Material Mild Steel

TEL : Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
