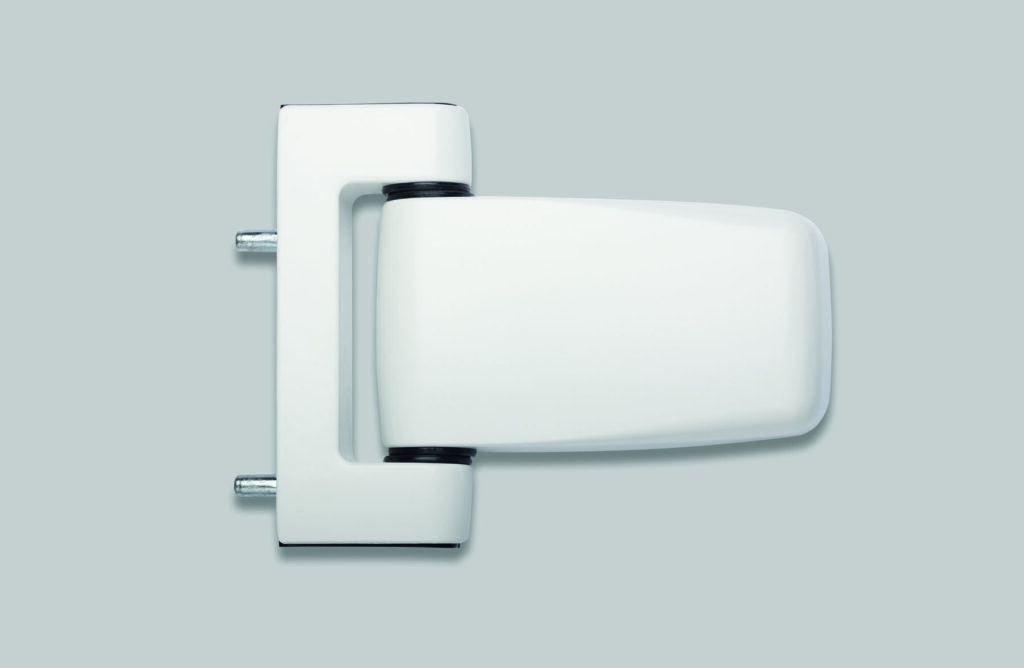

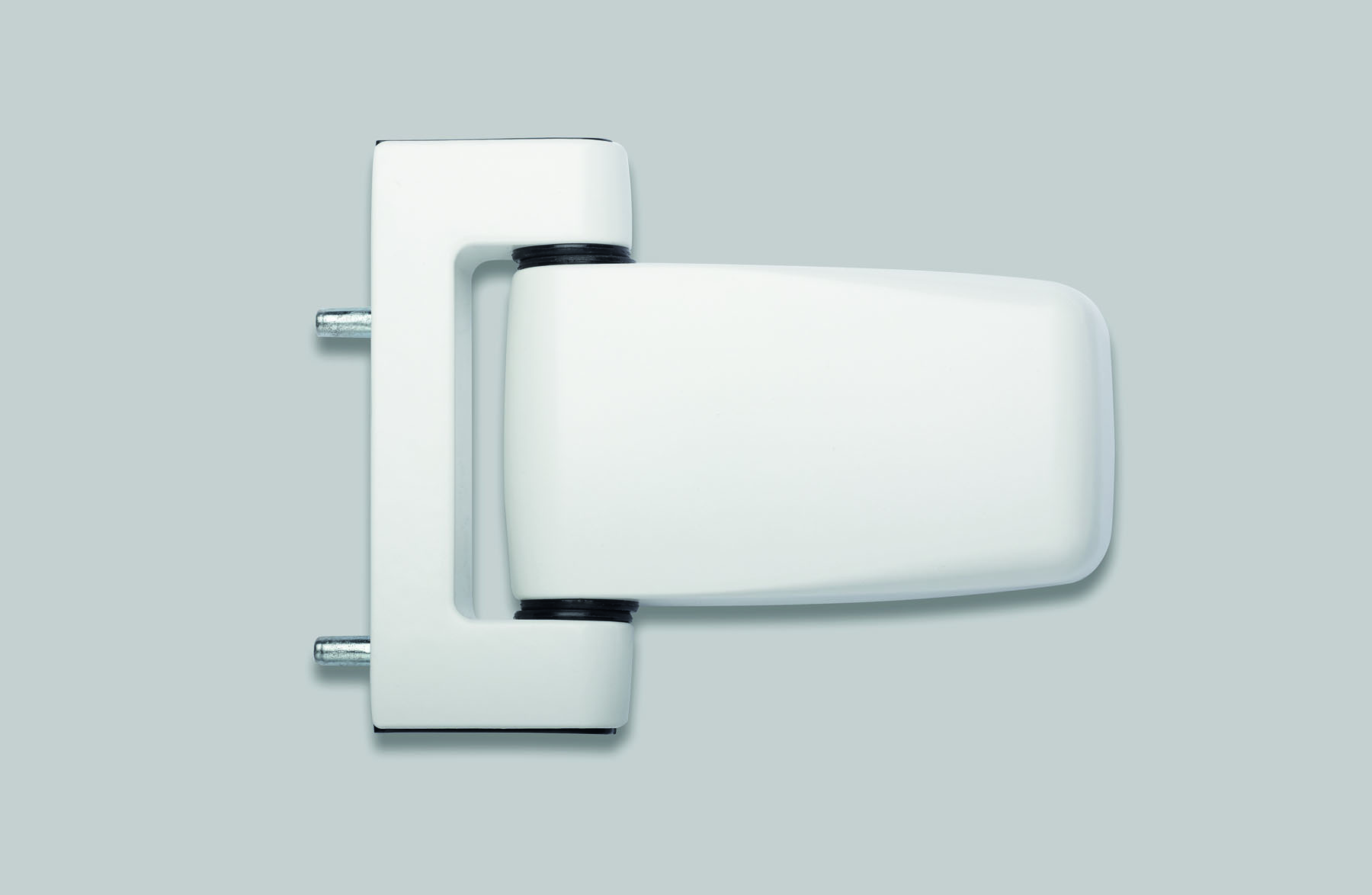

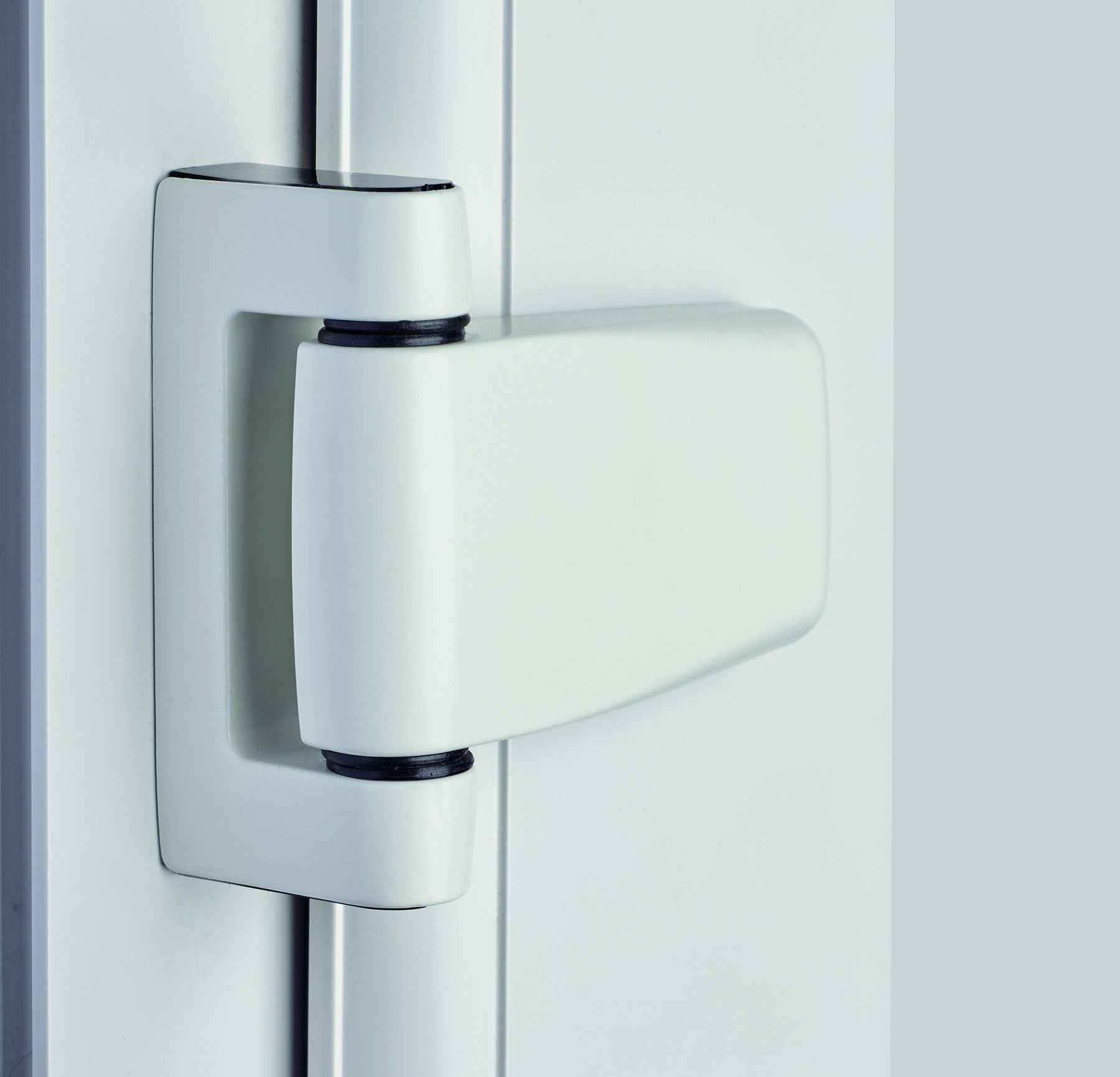

Oxford 3D Hybrid UPVC Door Hinge

The Oxford 3D Hybrid uPVC Door Hinge combines the three-way adjustment of a flag hinge, saving time on site, and the strength of a traditional butt hinge, providing excellent long term stability and alignment of doors up to 100kg.

Designed, engineered and tested in the UK, the Oxford is non handed and is quick and easy to fit. It is capable of meeting the requirements of PAS24 as a critical component without the need for additional hinge protectors.

Features & Benefits

  • Minimal assembly, quick and easy to fit
  • Everything in 1 box with simple ordering. One part number per hinge variant
  • Reduced packaging, boxed in 12s
  • Easy three-way adjustment
  • Height adjustment +/- 4mm
  • Horizontal adjustment +/- 5mm
  • Compression adjustment +/- 1mm
  • Tested to 200,000 cycles
  • Max door weight 100kg
  • Achieved PAS24 without additional hinge protectors
  • Secured By Design Police Preferred Specification
  • Pivoting sash cover – hinge stays assembled during adjustment
  • Non-handed
  • 19mm and 22mm step heights
  • Not profile specific
  • Jig available
  • Excellent corrosion resistance on powder coat finishes
  • 10 year mechanical guarantee

Testing & Technical

  • ISO9001 Quality System
  • Corrosion tested to BS EN1670 Grade 5:480 hours
  • Successfully tested to BS EN1935:2002 Building Hardware for Single Axis Hinges
  • Successfully tested as a critical component within PAS24
  • Designed, engineered and tested in the UK
