4071 Locker Hinge for Plant On Doors – 63mm

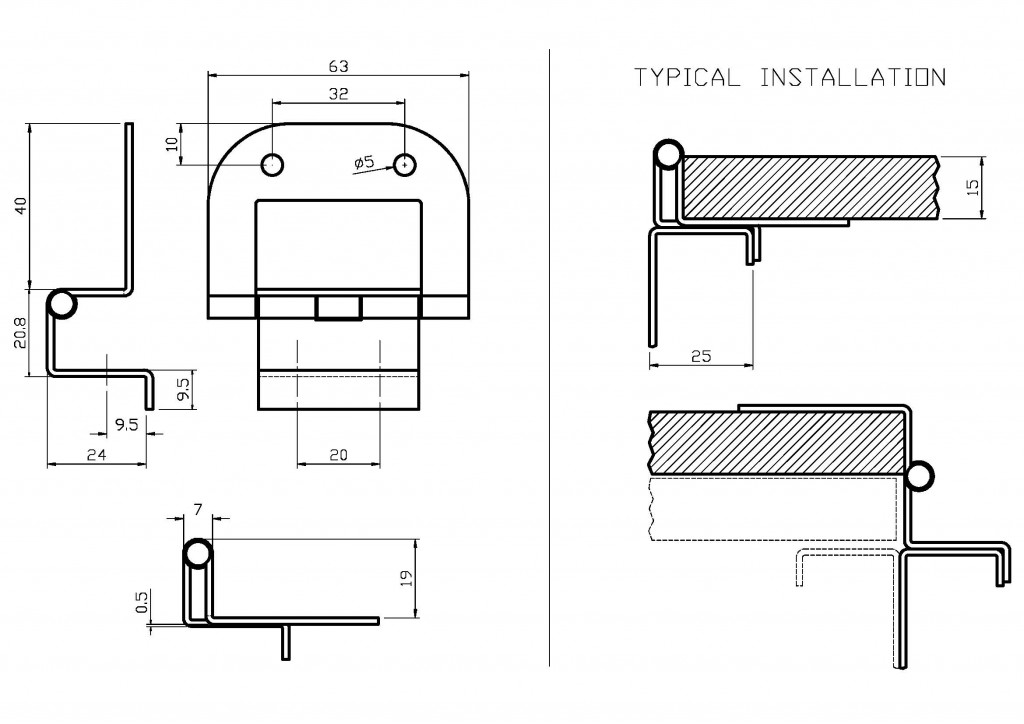

A 63mm Locker Hinge for Plant On Doors. Suitable for 15mm wooden or composite doors and available in zinc plate for good corrosion resistance. Fixing with rivets or screws (not supplied).
Features & Benefits
- Made in Britain
- Easy and simple to fit
- Quality Materials
- Separate range of nuts available
These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.
Size & Type |
63mm Unsprung |
| Length | 63mm |
| Door Leaf Width | 40mm |
| Thickness | 1.6mm |
| Fixing Holes | 4 |
| Fixing Size | 4.8mm |
| Zinc Plate | TEL: 4071ZP |
| Bulk Packed | 250 |
| Max. load (2 hinges fitted) | 7kg |
| Max. load (3 hinges fitted) | 10kg |
| Material | Mild Steel |
TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
