1875 Cranked Butt Hinge – 75mm

Print this Page

A Cranked Butt Hinge for multiple building applications.

Features & Benefits

  • Made in Britain
  • Strong and Reliable
  • Choice of Finishes

These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.

Size

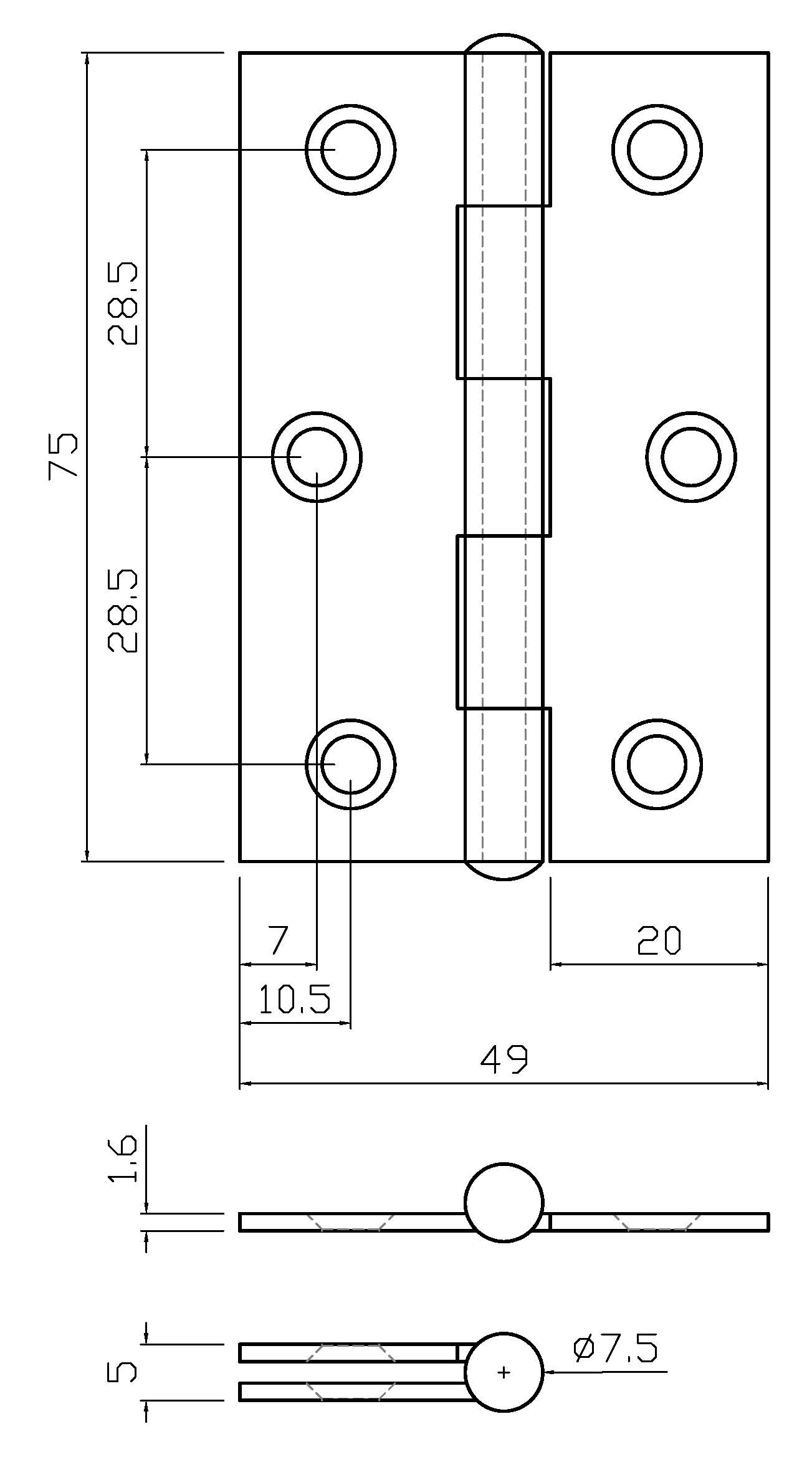

75mm (3″) Square
75mm (3″) Loose Pin
Length 75mm 75mm
Width Open 49mm 49mm
Thickness 1.6mm 1.6mm
Screw Holes 6 6
Screw Size 7 7
Bulk Packed 100 100
Self-coloured 1875 0 22 01 Not available
Electro-brassed 1875 0 22 02 1875 0 42 02
Zinc-plated 1875 0 22 04 Not available
Duty Medium Duty Medium Duty
Max. Load (2 hinges fitted) 16.5kg 16.5kg
Max. Load (3 hinges fitted) 25kg 25kg
Material Mild Steel Mild Steel

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
