Single Cranked Hinge

Print this Page

Features & Benefits

  • Made in the Britain
  • Simple and Easy to Fit
  • Decorative Finishes

These hinges are supplied dry in order to ease handling and prevent the transfer of oily marks. They will benefit from careful lubrication after installation, and occasional periodic lubrication as required.

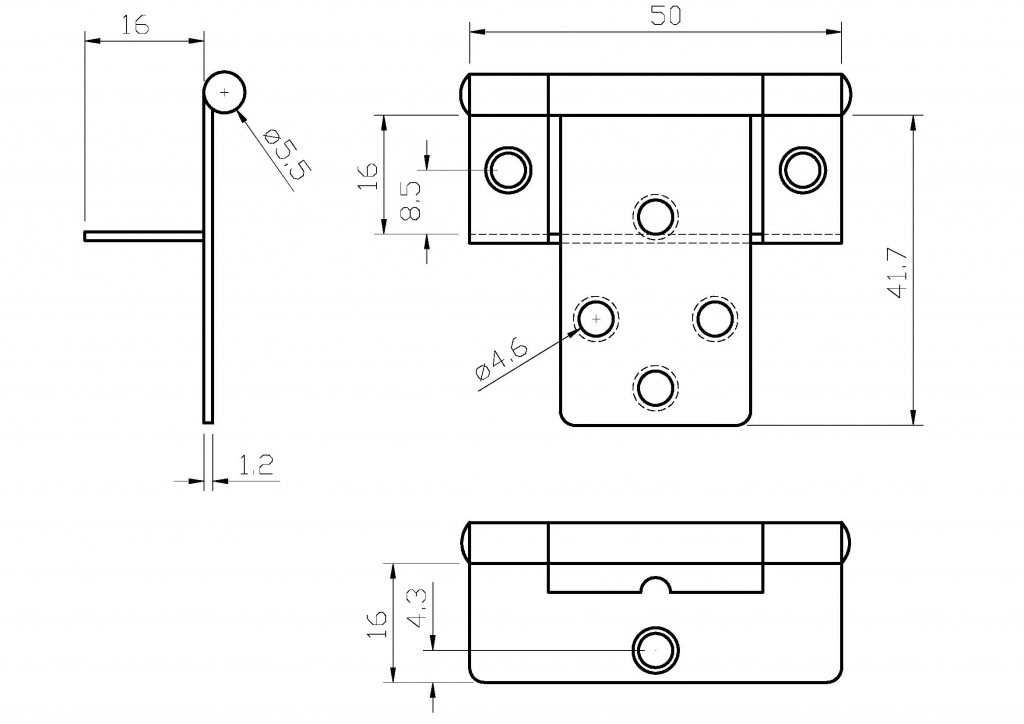

Size
10mm (⅜”)
16mm (⅝”)
Length 50mm 50mm
Cranked 10mm 16mm
Thickness 1.2mm 1.2mm
Screw Holes 7 (all to Face) 7
Screw Size 4 4
Bulk Packed 500 500
Electro-Brassed 0430 0 22 02 0410 0 22 02
Florentine Bronzed TEL:0410 0 22 03
Zinc-Plated 0410 0 22 04
Duty Light Light
Max. load (2 hinges fitted) 7kg 7kg
Max. load (3 hinges fitted) 10kg 10kg
Material Mild Steel Mild Steel

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
