4815 Grade 12 & 13 Radius Butt Hinge

Print this Page

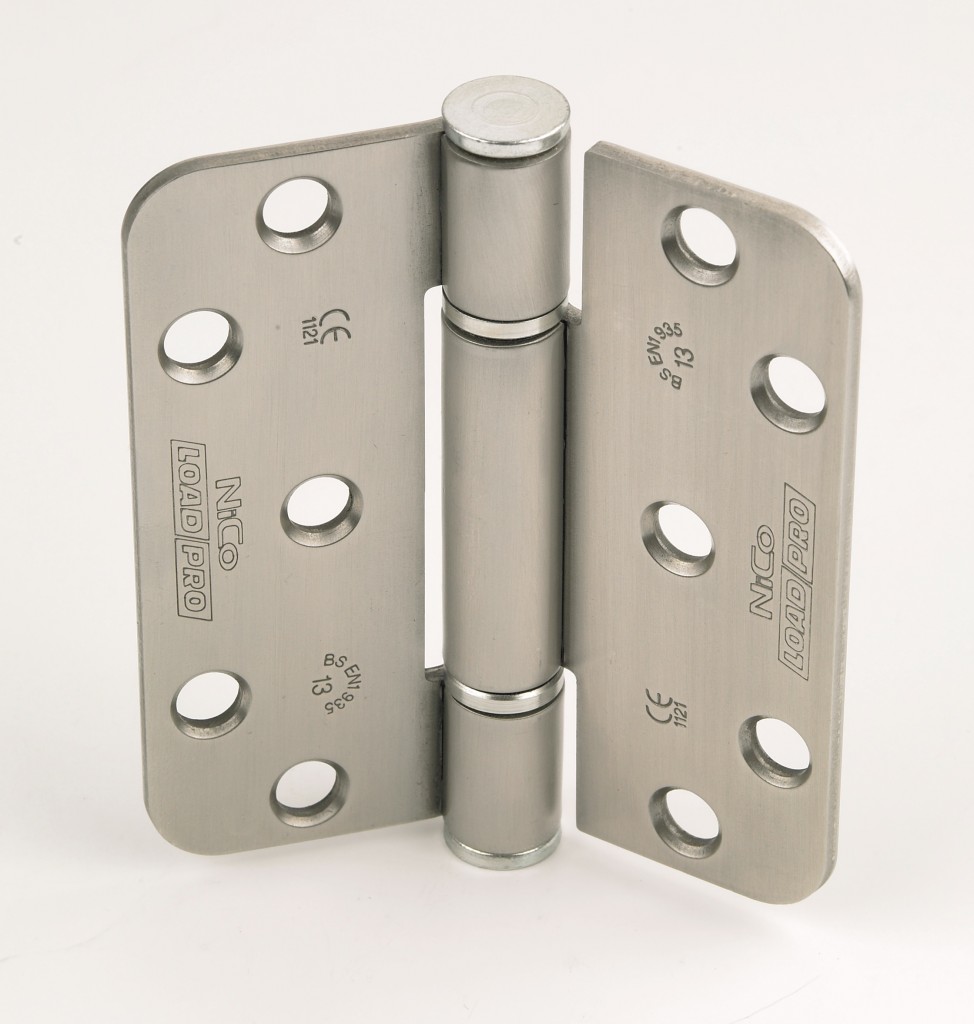

100mm x 88mm Two Bearing Butt Hinge (radius)

  • Grade: 304 stainless steel or CS4 mild steel
  • EN 1935: 2002 Grades 12 & 13
  • CE Certificate Nos: 1121-CPR-AC0083/AC0085/AC0089/AC0090
  • Certifire 30min & 60min Assessment Report CF769
  • Warrington Fire Assessment Report 30min & 60min WFAR176781
  • Fire tested in accordance with EN 1634-1:2000 & CE Marked
  • Supplied with No.10 1¼” screws
  • Maximum adjusted door weight: 120kg
  • Recommended minimum door thickness: 44mm

Features & Benefits

  • Made in Britain
  • Maintenance Free
  • 25 Year Guarantee
  • Grade 12 Mild Steel & Grade 13 Stainless Steel
Part No.
Finish
Box/Outer
4815R ZP Zinc Plate 10 / 40
4815R ZY Yellow Zinc TEL:10 / 40
4815R S5 Supercoat 500 10 / 40
4815R C Powdercoat TEL:10 / 40
4815R SS-S Satin ST/ST 10 / 40

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.

Finish
CE
Certifire 30min & 60min
WFAR 30min
WFAR 60min
Electro Brass
Nickel Plate
1121-CPR-AC0083 CF 769 176781 176781
Bright Zinc
Satin Nickel
1121-CPR-AC0085 CF 769 176781 176781
Yellow Zinc
Supercoat-500
Polished Chrome
Polished Brass
Coated
1121-CPR-AC0089 CF 769 176781 176781
Satin-Stainless
Polished Stainless
1121-CPR-AC0090 CF 769 176781 176781
  • PLEASE NOTE. NOT ALL CERTIFIED FINISHES ARE AVAILABLE
    FROM STOCK AND MINIMUM BATCH QUANTITIES MAY APPLY.
