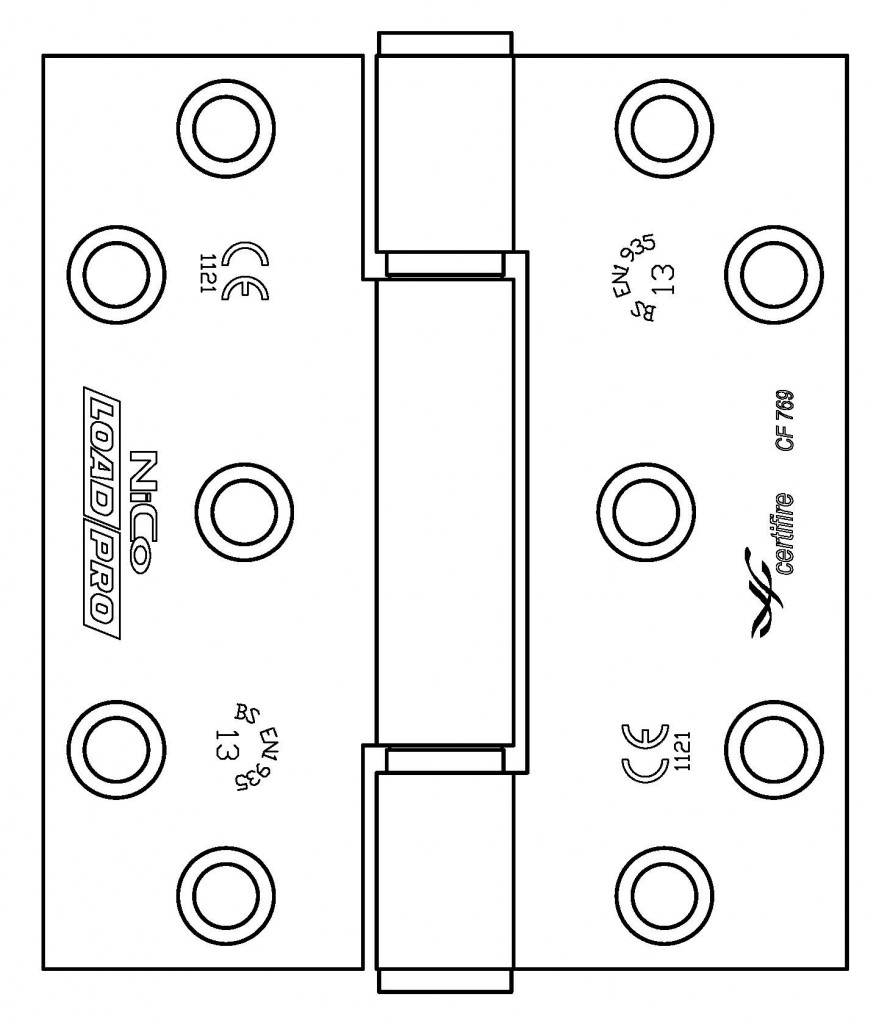

4815 Grade 12 & 13 Square Butt Hinge

100mm x 88mm Two Bearing Butt Hinge (square)

Features & Benefits

  • Maintenance free bearing
  • Grade: 304 stainless steel or CS4 mild steel & Supercoat
  • Ideal for use in high traffic environments
  • Ideal for use with fingertrap protection
  • Maximum adjusted door weight: 120kg
  • Recommended minimum door thickness: 44mm
  • Supplied with No.10 1¼” screws
  • 25 year mechanical guarantee

Testing & Technical

  • Made in Britain to an ISO 9001 Quality System
  • UKCA and CE marked
  • EN 1935: 2002 Grades 12 ( mild steel ) & 13 ( stainless steel )
  • UKCA Certificate Nos: 1121-CPR-UK-AC7728/AC7730/AC7731
  • CE Certificate Nos: 2812-CPR-AC0083/AC0089/AC0090
  • Certifire 30min & 60min Assessment Report CF769
  • 30 minute Warrington Fire Assessment Report WFAR176781
  • 60 minute Fire Tested in accordance with EN 1634-1

PART NUMBERS

Part No.
Finish
Box/Outer
4815 ZY Yellow Zinc TEL:10 / 40
4815 S5 Supercoat 500 ZP 10 / 40
4815 C Powdercoat TEL:10 / 40
4815 SS-S Satin ST/ST 10 / 40

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.

CERTIFICATION

Finish
CE
UKCA
Certifire 30 min & 60min
WFAR 30min
WFAR 60min
Electro Brass
Nickel Plate
2812-CPR-AC0083 1121-CPR-UK-AC7728 CF769 176781 176781
Yellow Zinc
Supercoat ZP
Pol Chrome
Polished Brass
Coated
2812-CPR-AC0089 1121-CPR-UK-AC7730 CF 769 176781 176781
Satin-Stainless
Polished-Stainless
2812-CPR-AC0090 1121-CPR-UK-AC7731 CF 769 176781 176781
  • PLEASE NOTE. NOT ALL CERTIFIED FINISHES ARE AVAILABLE
    FROM STOCK AND MINIMUM BATCH QUANTITIES MAY APPLY.
