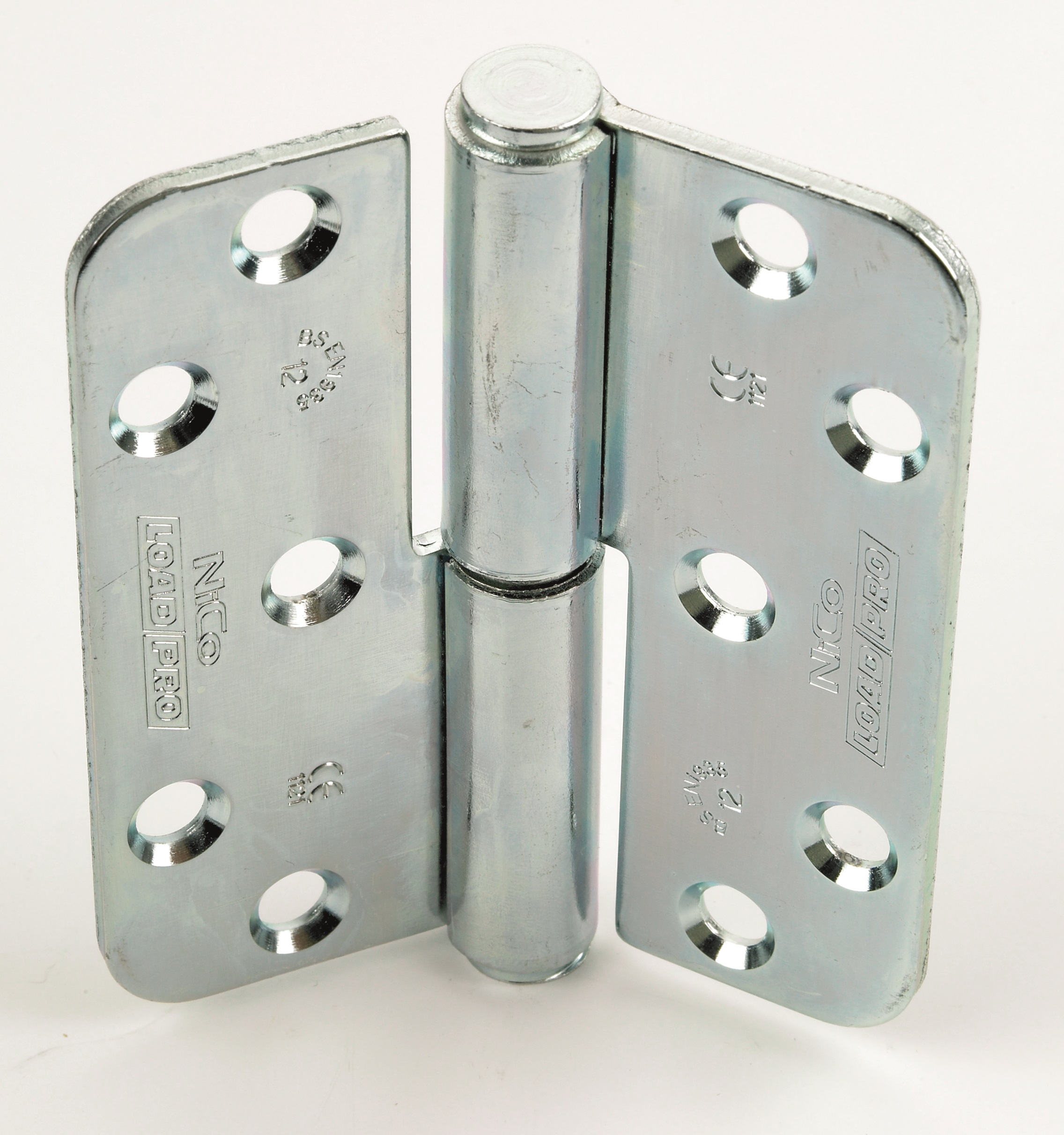

4717 Maintenance Free Grade 12 Lift Off Hinge

98mm x 84mm Symmetrical Leaf Lift Off Hinge (handed)

Tried and tested in both laboratory and the marketplace, the 4717 has been the mainstay of the LoadPro hinge range for fire doors up to 100Kg. Together with its security variant – the 4718 – this genuinely maintenance free hinge has a self-lubricating polymer bearing and an 8mm pin giving a low co-efficient of friction and unsurpassed strength and longevity.

Features & Benefits

  • Self lubricating polymer bearing
  • Polymer bearings provide low co-efficient of friction
  • Bearings guarantee the right lubrication for the life of the hinge
  • Grade: 304 stainless steel or CS4 mild steel & Supercoat
  • Ideal for use in high traffic environments
  • Ideal for use with fingertrap protection
  • Easy alignment of door leaf and frame during fitting
  • Maximum adjusted door weight: 100kg
  • Recommended minimum door thickness: 44m
  • Supplied with No.10 1¼” screws
  • 25 year mechanical guarantee

Testing & Technical

  • Made in Britain to an ISO 9001 Quality System
  • UKCA and CE marked
  • EN 1935: 2002 Grade 12
  • UKCA Certificate Nos: 1121-CPR-UK-AC7725/AC7726/AC7727
  • CE Certificate Nos: 2812-CPR-AC0080/AC0081/AC0082
  • Certifire 30min & 60min Assessment Report CF769
  • 30 minute Warrington Fire Assessment Report WFAR176781
  • 60 minute Warrington Fire Assessment Report WFAR176781

PART NUMBERS

Part No.
Finish
Box/Outer
4717 5 ZP Zinc Plate Left Hand 10 / 40
4717 6 ZP Zinc Plate Right Hand 10 / 40
4717 5 ZY Yellow Zinc Left Hand TEL:10 / 40
4717 6 ZY Yellow Zinc Right Hand TEL:10 / 40
4717 5 S5 Supercoat 500 ZP Left Hand 10 / 40
4717 6 S5 Supercoat 500 ZP Right Hand 10 / 40
4717 5 C Powdercoat Left Hand TEL:10 / 40
4717 6 C Powdercoat Right Hand TEL:10 / 40
4717 5 SS-S Satin ST/ST Left Hand TEL:10 / 40
4717 6 SS-S Satin ST/ST Right Hand TEL:10 / 40

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.

CERTIFICATION

Finish
CE
UKCA
Certifire 30MIN & 60MIN
WFAR 30min & 60min
Electro-brassed
Nickel Plate
2812-CPR-AC0080 1121-CPR-UK-AC7725 CF 769 176781
Bright-zinc
Satin Nickel
2812-CPR-AC0081 1121-CPR-UK-AC7726 CF 769 176781
Yellow-zinc
Supercoat ZP
Satin-Stainless
Polished-Stainless
Polished-Chrome
Polished-Brass
Coated
2812-CPR-AC0082 1121-CPR-UK-AC7727 CF 769 176781
  • PLEASE NOTE. NOT ALL CERTIFIED FINISHES ARE AVAILABLE
    FROM STOCK AND MINIMUM BATCH QUANTITIES MAY APPLY.
