High Security Hardware For Topswing

The Nico Multilock is a great solution for high security locking on topswing windows. 10.5mm cams are used to meet the requirements of topswing profiles, and profile specific packers sit neatly beneath standard multilock dual keeps.

It is a high performance Security Locking System that is exceptionally strong and very easy to fit. The innovative, patented twin cam design will easily achieve the PAS24 2012 Security Standard on most PVC-U and aluminium window profiles.

A quality build and robust profile-specific keeps combine to ensure a long, reliable life and light, smooth closing action. Plus, the attractive Supercoat 500 silver finish provides excellent corrosion protection.

Features & Benefits

  • Made in Britain
  • Secured By Design Approved
  • Successfully tested as a critical component within PAS024 : 2012
  • Patented Design
  • Supercoat 500 finish for excellent corrosion resistance

Technical Data

The MultiLock is easy to fit and has adjustable seal compression. For fabricator convenience, it uses the same preparation as Nico Espagnolettes and Shootbolts, with common keeps across the complete Locking System range. The MultiLock is tested to loads of more than 5000N and has also completed endurance testing of over 30,000 cycles.

Eccentric 7.8mm or 9mm mushroom cams allow weatherseal pressure adjustment to +/- 1mm and heavy gauge materials and fixing points protect against attack. A version with offset gearbox is also available for lower handle positions to meet the requirements of ‘Design for Life’.

Multilock for Topswing

10.5mm Part No.
Description
Box
TEL:91X620S5 Multilock 20mm B/set S500 550mm 20
TEL:91X820S5 Multilock 20mm B/set S500 750mm 20
TEL:91X1020S5 Multilock 20mm B/set S500 950mm 20
TEL:91X1220S5 Multilock 20mm B/set S500 1150mm 20
TEL:91X622S5 Multilock 20mm B/set S500 550mm 20
TEL:91X822S5 Multilock 20mm B/set S500 750mm 20
TEL:91X1022S5 Multilock 20mm B/set S500 950mm 20
TEL:91X1222S5 Multilock 20mm B/set S500 1150mm 20

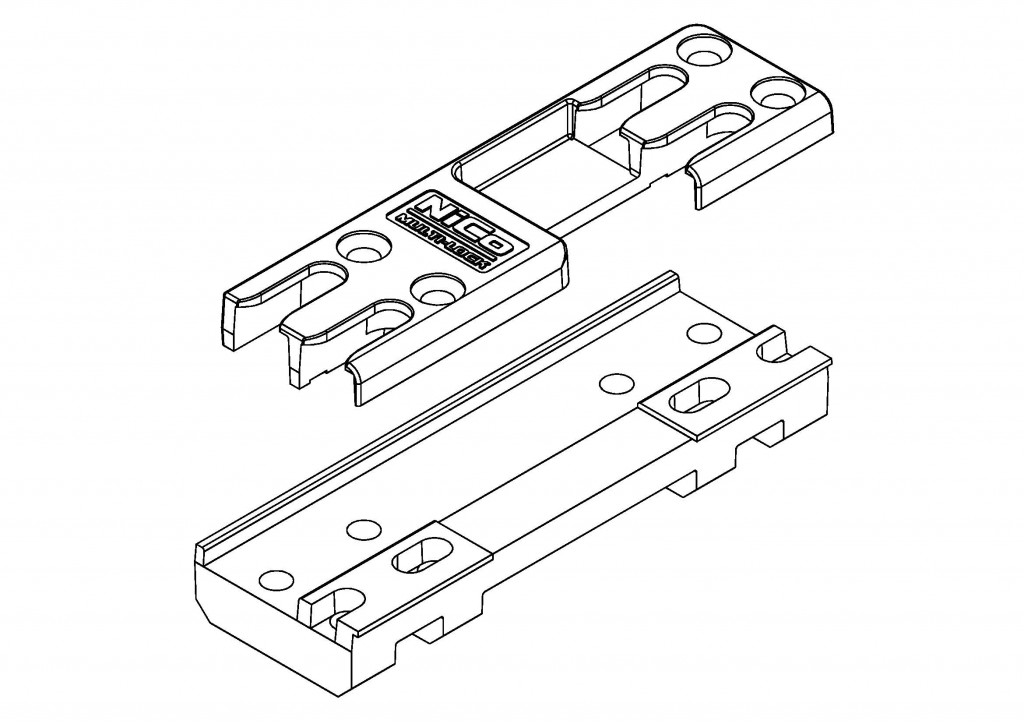

Topswing Packers

Part No.
Product
Description
Box
TEL:39205 Single Packer Bowater packer for keep 9005 200
TEL:39305 Double Packer Bowater packer for keep 9105 200
TEL:39015 Single Packer LB Sheerframe packer for keep 9015 200
TEL:39115 Double Packer LB Sheerframe packer for keep 9115 200
TEL:39005 Single Packer Spectus/Veka packer for keep 9005 200
TEL:39105 Double Packer Spectus/Veka packer for keep 9105 200

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.
