Espagnolette

Print this Page

High performance window locking

Rigorously tested and proven, the Nico Espagnolette is an easy to fit locking solution for windows. It has excellent robustness, durability and functionality, and exceptionally high resistance to corrosion. It has eccentric mushroom cams which allow weatherseal adjustment of +/- 1mm, and it is complemented by high pressure die cast zinc keeps to suit many profiles

Features & Benefits

  • Rigorously tested ( see related downloads on this page )
  • Supercoat special corrosion resistant coating
  • +/- 1mm adjustable cams for weatherseal compression
  • Robust profile specific night vent keeps
  • Strong. smooth and reliable gearbox for long life performance
  • 10 year mechanical guarantee

Testing & Technical

  • Made in Britain to an ISO 9001 Quality System
  • Successfully tested to BS EN 1670 Grade 5 ( 480 hours ) corrosion resistance
  • Successfully tested to BS EN 13126-4 for durability, strength and function
  • Successfully cycle tested as a critical component within BS EN 6375 Pt 2 ( Resistance to repeated opening and closing )
  • Successfully weather tested as a critical component within BS EN 6375 Pt 1 ( Air, wind and water testing )

Nico espagnolettes have been endurance tested to 3 times the British Standard requirement.

Technical Data

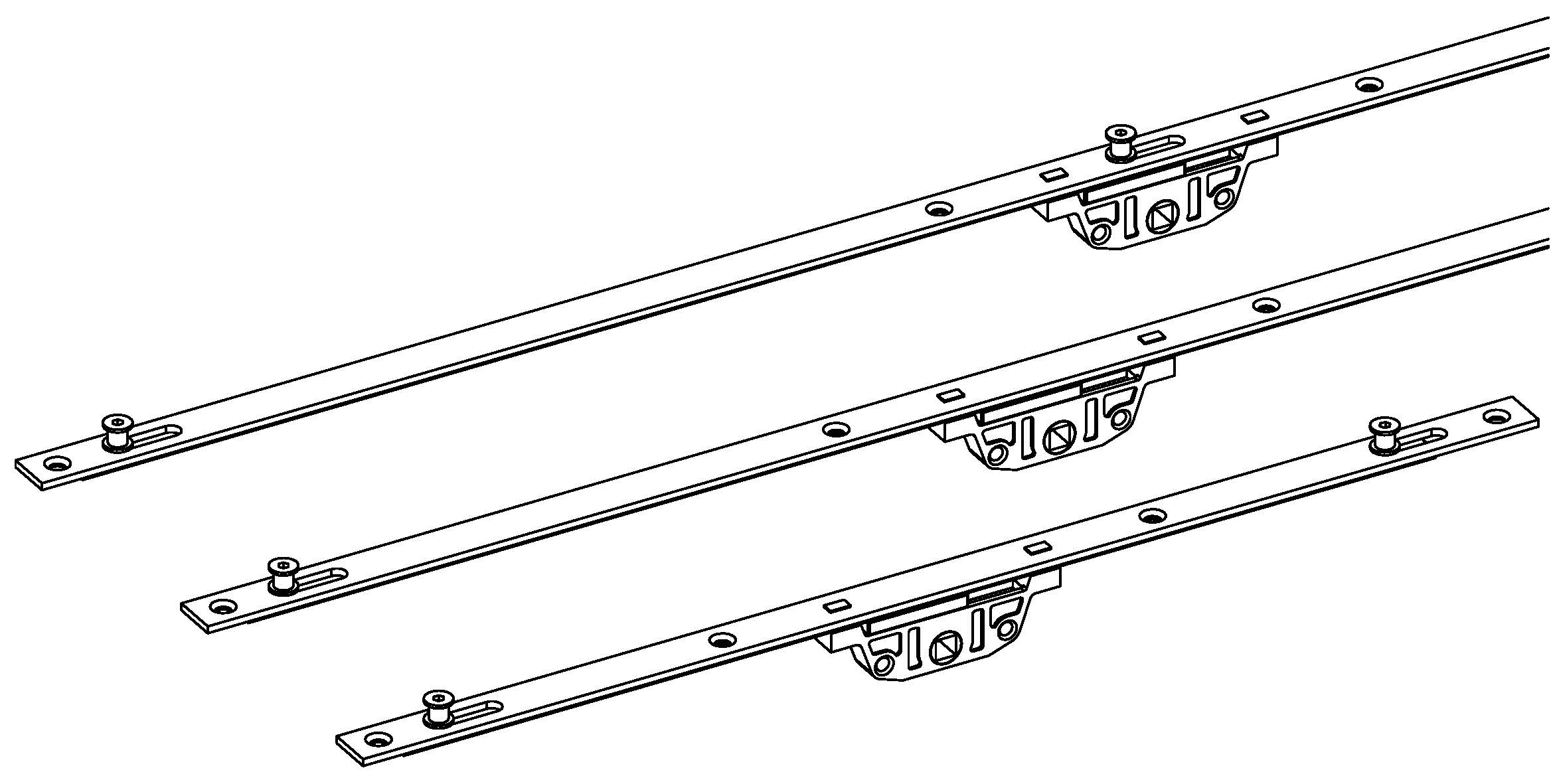

The Nico Espagnolette comes in a range of sizes, from 170mm up to 1150mm, with one to three cams and two to six fixing holes according to length. For the two longest sizes, an additional central cam provides compression on larger sashes.

The Espagnolette is available with lockcase backsets of 20mm or 22mm, a 7mm square spindle drive and operating handle fixing holes at 43mm centres. The eccentrically adjustable cams are either 7.8mm or 9mm according to customer requirements.

Fitting instructions are provided on the Espagnolette pdf in related downloads.

20mm Backset Espagnolettes

Description
Order No. 7.8mm
Order No. 9mm
No. of Cams
Box Quantity
170mm Espagnolette bolt 98220S5 99220S5 1 20
280mm Espagnolette bolt 98320S5 99320S5 2 20
350mm Espagnolette bolt 98420S5 99420S5 2 20
550mm Espagnolette bolt 98620S5 99620S5 2 20
750mm Espagnolette bolt 98820S5 99820S5 2 20
950mm Espagnolette bolt 981020S5 991020S5 3 20
1150mm Espagnolette bolt 981220S5 991220S5 3 20

22mm Backset Espagnolettes

Description
Order No. 7.8mm
Order No. 9mm
No. of Cams
Box Quantity
170mm Espagnolette bolt 98222S5 99222S5 1 20
280mm Espagnolette bolt 98322S5 99322S5 2 20
350mm Espagnolette bolt 98422S5 99422S5 2 20
550mm Espagnolette bolt 98622S5 99622S5 2 20
750mm Espagnolette bolt 98822S5 99822S5 2 20
950mm Espagnolette bolt 981022S5 991022S5 3 20
1150mm Espagnolette bolt 981222S5 991222S5 3 20
