MK2 Shootbolt

Print this Page

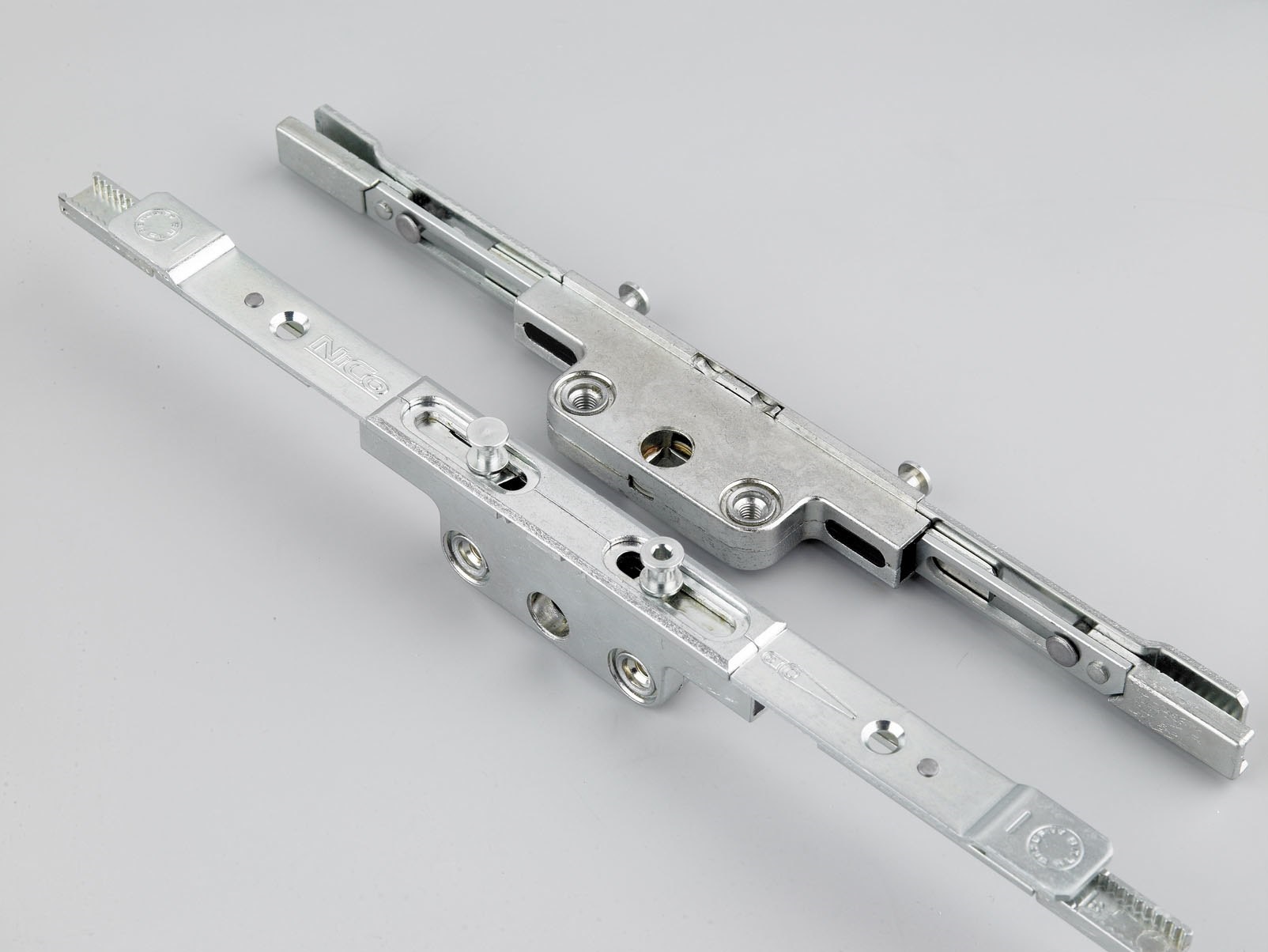

Designed for strength and reliability the MK2 Shootbolt Locking System is built to the most exacting standards to provide an effective, secure locking system and a smooth closing action. Steel shootbolts lock into robust profile specific keeps to provide security in the vulnerable corner of the window, with mushroom cams providing additional strength and weatherseal compression adjustment. Extremely versatile, it can be used for low handle height applications and Master windows in French Window designs.

    Features & Benefits

  • Rigorously tested ( see related downloads on this page )
  • Cams on the gearbox, with cams and shootbolts on the extensions which travel towards the vulnerable corners of the window
  • Enhanced security as a result of profile specific solid zinc keeps
  • Exceptional resistance to corrosion achieved by Supercoat finish
  • Low handle height options for multi occupancy dwellings
  • Adjustable cams ( +/- 1mm ) allow weatherseal compression
  • Night vent facility provided on keeps
  • Compatible range of keeps for French Windows
  • Strong. smooth and reliable gearbox gives long life performance
  • 10 year mechanical guarantee

Testing & Technical

  • Made in Britain to an ISO 9001 Quality System
  • Successfully security tested as a critical component within PAS 24 : 2016
  • Secured By Design approved as a Police Preferred Specification
  • Successfully tested to BS EN 1670 Grade 5 ( 480 hours ) corrosion resistance
  • Successfully tested to BS EN 13126-4 for durability, strength and function
  • Successfully cycle tested as a critical component within BS EN 6375 Pt 2 ( Resistance to repeated opening and closing )
  • Successfully weather tested as a critical component within BS EN 6375 Pt 1 ( Air, wind and water testing )

The MK 2 Shootbolt has been endurance tested to 3 times the British Standard requirement.

Technical Data

The MK 2 Shootbolt is fast and easy to fit in a standard eurogroove. It features a 22mm Gearbox and eccentric cams of 7.8mm or 9mm. The cams allow weatherseal pressure adjustment of +/- 1mm. A range of extensions (detailed on the Shootbolt Extensions webpage) make the shootbolt suitable for a wide range of window applications.

Fitting instructions are provided on the Nico Shootbolts pdf in related downloads

Description
Box Qty
Sash Size
Part No. 7.8 Cam
Part No. 9.0 Cam
Gearbox 22mm 20 93805 93905
Gearbox 30mm 20 TBC TBC
Gearbox 35mm 20 TBC TBC
Extension 1 40 330-460mm 93815 93815
Extension 2 40 460-800mm 93825 93925
Extension 3 40 800-1100mm 93835 93935
Extension 4 40 1100-1400mm 93845 93945
Extension 7 20 1400-1700mm TEL: 93875 TEL: 93975
Extension 8 20 Offset Application TEL: 93885 TEL: 93985
Extension 9 20 Offset Application TEL: 93895 TEL: 93995

TEL: Products indicated with the Telephone Symbol are available to order only. Please ring for details and lead times.

Sash Size
Shoot-bolts
Shoot-bolt
Strikers
Mushrooms
Mushroom
Strikers
Ext. 1: 330-460mm 2 2 2 1
Ext. 2: 460-800mm 2 2 4 3
Ext. 3: 800-1100mm 2 2 4 3
Ext. 4: 1100-1400mm 2 2 4 3
Ext. 7: 1400-1700mm 2 2 6 5
Ext. 8: Offset Application 2 2 6 5
Ext. 9: Offset Application 2 2 6 5
